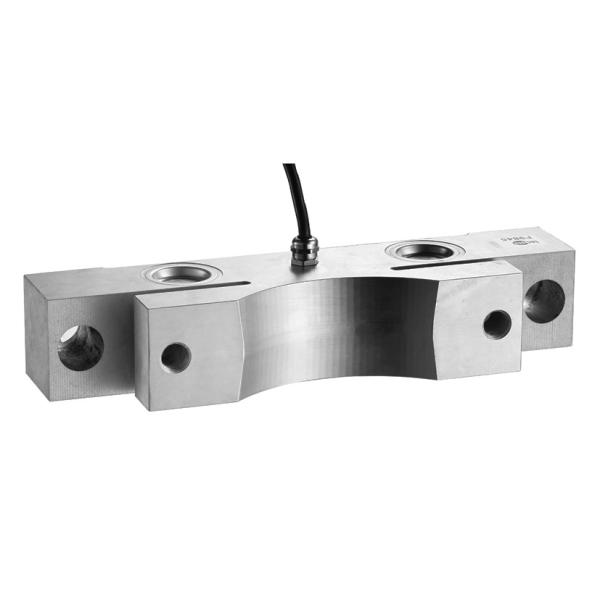

Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity

Brand Name : tecsis
Model Number : F9845
Place of Origin : China
MOQ : 10pcs
Price : negotiation
Payment Terms : L/C, T/T
Supply Ability : 20,000pcs per month
Delivery Time : Stock product:3~5 working days , No stock:10~35 days
Packaging Details : Standard: carton
Product Name : F9845 crane load cell
Structure : Compact
Material : Stainless steel
Customized : Acceptable
Capacity : 10t~110t
OEM/ODM : Acceptable
Theory : Resistance Sensor
Contact Now

Compact Crane Strain Gauge Load Cell Sensors 10T - 110T Capacity


Features :

  • Model:F9845
  • Crane load cell
  • High comprehensive precision, high stability
  • Capacity:10t~110t
  • Made of stainless steel
  • Used for Crane

Description:


F9845 Force transducer is available in the capacities 10t~110t.

The protection class is IP67, this makes it easy to used in kinds of harsh envirenments.


It has a high accuracy and easy to install. Its weight is 7.7kg.

It has a good long term stability.

It is easy to install.

Strong shock resistance,long term stability

Wide range,IP 67 protection
Suitable for all kinds of cranes


Applications:


Suitable for all kinds of cranes.


Technical parameters:


Specifications

Technique

Rated output

2.0±1% mV/V(10t~30t)

1.5±1% mV/V(40t~110t)

Zero balance

±2% F.S.

Total error

≤0.1% F.S.(10t~30t)

≤0.2% F.S.(40t~60t)

≤0.3% F.S.(80t~110t)

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

750±50Ω

Output impedance

702±3Ω

Recommended excitation

5~10VDC

Maximum excitation

15VDC

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5*10000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



Size and capacity:


Load Direction:



Schematic Wiring Diagram :


Product Details:
